Liquid insulation testing can reveal changes in moisture, insulation condition, contamination, ageing and electrical stress, but the significance of a result depends heavily on what surrounds it. Operating history, previous measurements, monitoring and other diagnostic information all shape how engineers assess condition and decide what needs attention.
Content provided by Doble-Megger

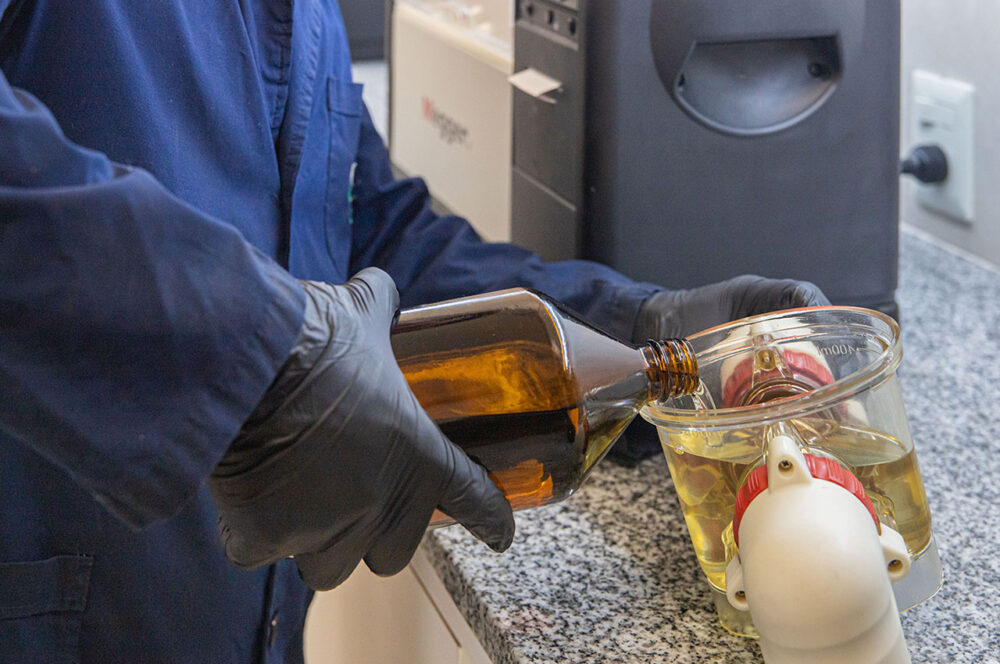

Transformer liquid insulation testing gives engineers a detailed view of condition at a point in time, but interpreting the result is rarely as simple as deciding whether a value sits inside or outside an expected range. Moisture, contamination, insulation ageing and electrical stress can all affect the liquid, while load, temperature and operating behaviour influence how much weight a reading should carry. The latest result becomes more useful when it is compared with the transformer’s history and the other evidence available.
Beyond a Single Measurement: Understanding Transformer Condition Over Time
Breakdown voltage is a good example. A result outside the expected range may justify attention, but it cannot explain on its own what has changed inside the asset or how quickly the condition is developing. Moisture may remain stable while dielectric measurements begin to move, or monitoring may show changes between scheduled tests that alter the significance of the latest result. Equally, a measurement can remain within an acceptable range while earlier results show gradual deterioration. A sequence of small shifts over several tests may tell an engineer more about the direction of the asset than one apparently acceptable reading.
Operating history adds another layer. Load and temperature affect transformer behaviour, moisture moves through the insulation system and ageing changes the baseline against which new results are judged. A reading that looks unusual against a general expectation may have remained broadly stable for that transformer over several years, while a smaller shift may deserve attention if it breaks with the asset’s established pattern.
Access to that history can be difficult. Liquid insulation test results may sit in one system, monitoring data in another and service reports in separate records. Engineers can end up working through old reports or asset files to understand how the latest result compares with what came before. Where information has accumulated across different teams, two people assessing the same transformer may also be working from different parts of its history. That fragmented view slows assessment and makes it easier to miss a trend that only becomes apparent when several sources are considered together.
Turning Historical Test Data Into Maintenance Decisions
The impact becomes more obvious when maintenance teams have to prioritise several assets. One transformer may have produced an unusual test result, while another shows slow movement across several measurements. Limited budgets, outage windows and engineering resources require a judgement about which asset deserves attention first, how quickly work is required and whether further testing or monitoring provides enough confidence to defer intervention.
Scheduled liquid insulation testing still provides the detailed snapshots needed for condition assessment, although the periods between those snapshots can be just as revealing. Monitoring allows engineers to follow how conditions move between tests, while historical results show whether the latest measurement fits with previous behaviour. Diagnostic expertise then brings those observations back to the asset itself, considering whether several indicators are changing together, whether the movement persists and whether it corresponds with known operating conditions.
For larger fleets, software can reduce manual work involved in making those comparisons. Earlier test results, monitoring information and records from different assets can be reviewed across time rather than retrieved separately for each assessment. Patterns buried across individual reports become easier to follow, particularly when engineers are comparing several transformers and deciding where maintenance effort should be concentrated.
Liquid insulation test data carries more weight as part of the developing history of an asset. Individual measurements remain valuable, but their significance depends on the pattern around them, the transformer’s operating conditions and other diagnostic evidence available. With those sources viewed together, engineers have a stronger basis for deciding whether a change reflects established behaviour, warrants closer observation or requires action.
