In this article, Megger explains how SFRA fingerprints provide the reference needed to assess whether transport, short-circuit forces or service events have altered a transformer’s internal geometry. Their value depends on trace quality, repeatable test conditions and disciplined comparison from factory to field.
Content provided by Clara Ron Digital Campaign Manager – Power at Megger Group Limited

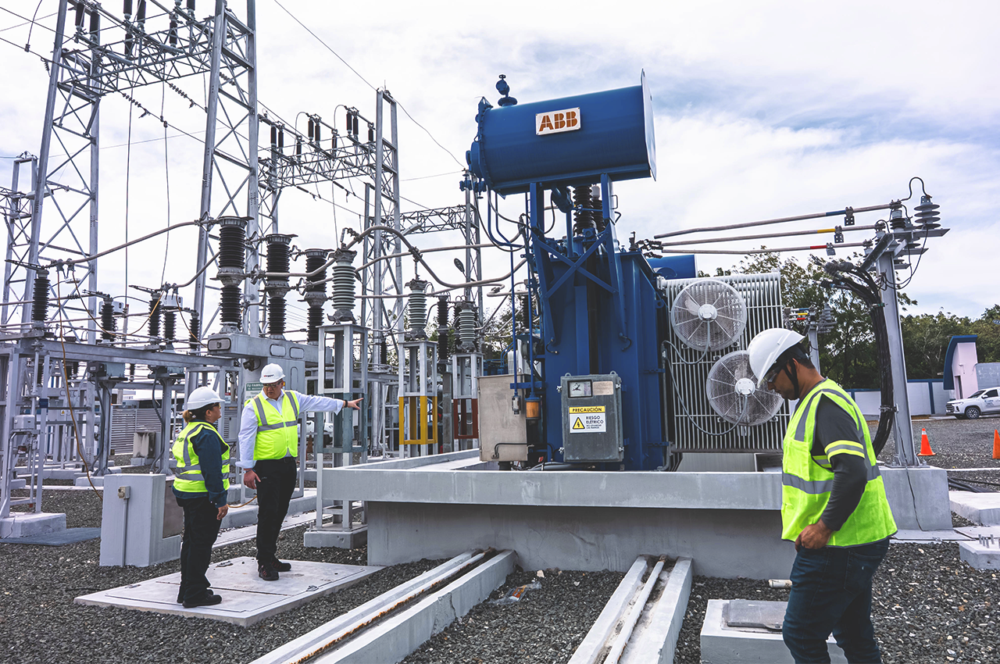

Mechanical movement inside a power transformer can remain concealed after transport, installation, short-circuit events or prolonged service. When external inspection and routine electrical results provide limited evidence, the stored SFRA fingerprint becomes central to determining whether the winding and core structure has remained stable.
A dependable baseline carries long-term value
The strongest SFRA comparisons use a time-based reference from the same transformer, captured in a known good condition. A factory trace establishes the baseline for later checks during commissioning, maintenance and post-event investigation.
Years later, engineers may need to determine whether a deviation reflects winding displacement, core movement, loosened clamping, partial collapse, shorted turns or an open winding. Confidence in that judgement depends on the quality of the original measurement and the consistency of each subsequent test.
A weak baseline creates uncertainty that cannot be removed through interpretation alone. Poor grounding, undocumented connections, inconsistent cable routing or an uncontrolled magnetic state can all alter the response and make later deviations harder to attribute.
After transport, a repeat measurement before energisation can confirm whether shipment and site handling have affected the response. Following a through-fault, the same reference can help focus the investigation on frequency regions associated with particular transformer components. The trace should be considered alongside electrical tests, event data, design information, inspection findings and the asset’s operating history.
Repeatability begins with the physical setup
SFRA comparison depends on recreating the original measurement conditions as closely as practical. Cable position, connection method, lead influence and grounding arrangements all affect trace comparability, particularly at higher frequencies.
Standardised grounding techniques, including IEC 60076-18 Method 1, help reduce variation between measurements. Photographs of cable routing, grounding points and connection details also give future test teams a practical record of the original arrangement. For long-life assets, that documentation can become as valuable as the trace itself.
Ground-loop integrity deserves particular attention. A missing or poorly connected braid can introduce a measurement difference that resembles a transformer change. Verifying the loop before acquisition reduces the risk of carrying setup uncertainty into the assessment.
Magnetic state also affects comparison quality
Residual magnetism can distort the low-frequency region and complicate comparison with an earlier trace. Demagnetisation before measurement supports a more consistent starting condition, especially after DC resistance testing or other activities that may leave the core magnetised.
From trace difference to asset decision
A deviation should be assessed against transformer design, test configuration, phase relationships, frequency region and the event that prompted the investigation. Time-based comparison remains the preferred reference, while phase-to-phase and sister-unit comparisons can provide supporting evidence where no historical trace is available.
The objective is a defensible judgement on whether the response has changed enough to justify further investigation, continued monitoring or intervention. Trace quality and setup records determine how confidently that judgement can be made.
Supporting repeatable measurements in the field
FRAX200 supports this process through automatic ground-loop detection, built-in demagnetisation, shielded cabling and IEC-compliant grounding arrangements. For large transformers, the optional FSX200 switchbox allows all phases to be connected during the initial setup, with active clamps disconnecting unused leads at the bushing end to limit their influence on the active measurement.
These features help maintain continuity between factory and field measurements, reduce avoidable setup variation and preserve the fingerprint as a reliable reference throughout the transformer lifecycle.
